Fiber Optic Adapter Production and Quality Control Process

Fiber Optic Adapter Production and Quality Control Process

 At Chengdu Focus Infra Materials Company, we pride ourselves on delivering high-quality, reliable, and durable fiber optic adapters that meet the most stringent industry standards. Our products are designed to provide seamless connectivity across diverse network infrastructures, ensuring optimal signal transmission with minimal loss. To achieve this, we have established a comprehensive production inspection process to guarantee the highest quality in every adapter we produce.

1. Raw Material Selection and Inspection

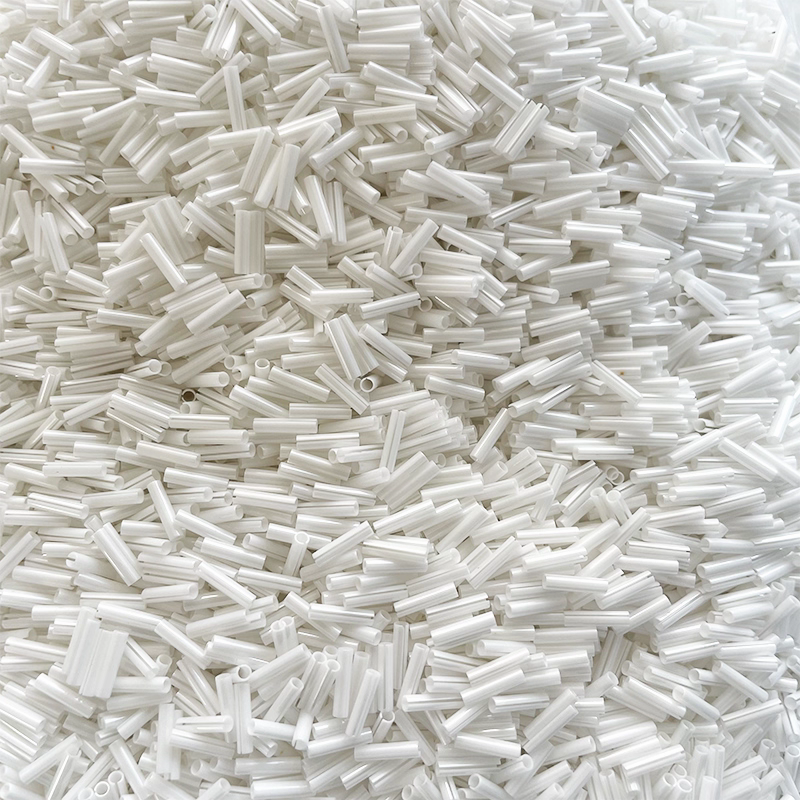

The foundation of any high-quality fiber optic adapter lies in the materials used in its production. At Chengdu Focus Infra Materials Company, we start with a rigorous selection process for raw materials, including zinc alloy for adapter housings, ceramic for ferrules, and high-performance plastics for connector components. These materials are sourced from trusted suppliers and undergo an initial inspection to verify their purity, strength, and compliance with international quality standards.

Before moving forward, every batch of raw materials is checked for:

• Consistency in composition.

• Compliance with environmental and safety regulations (such as RoHS).

• Durability and resistance to wear.

2. Precision Manufacturing

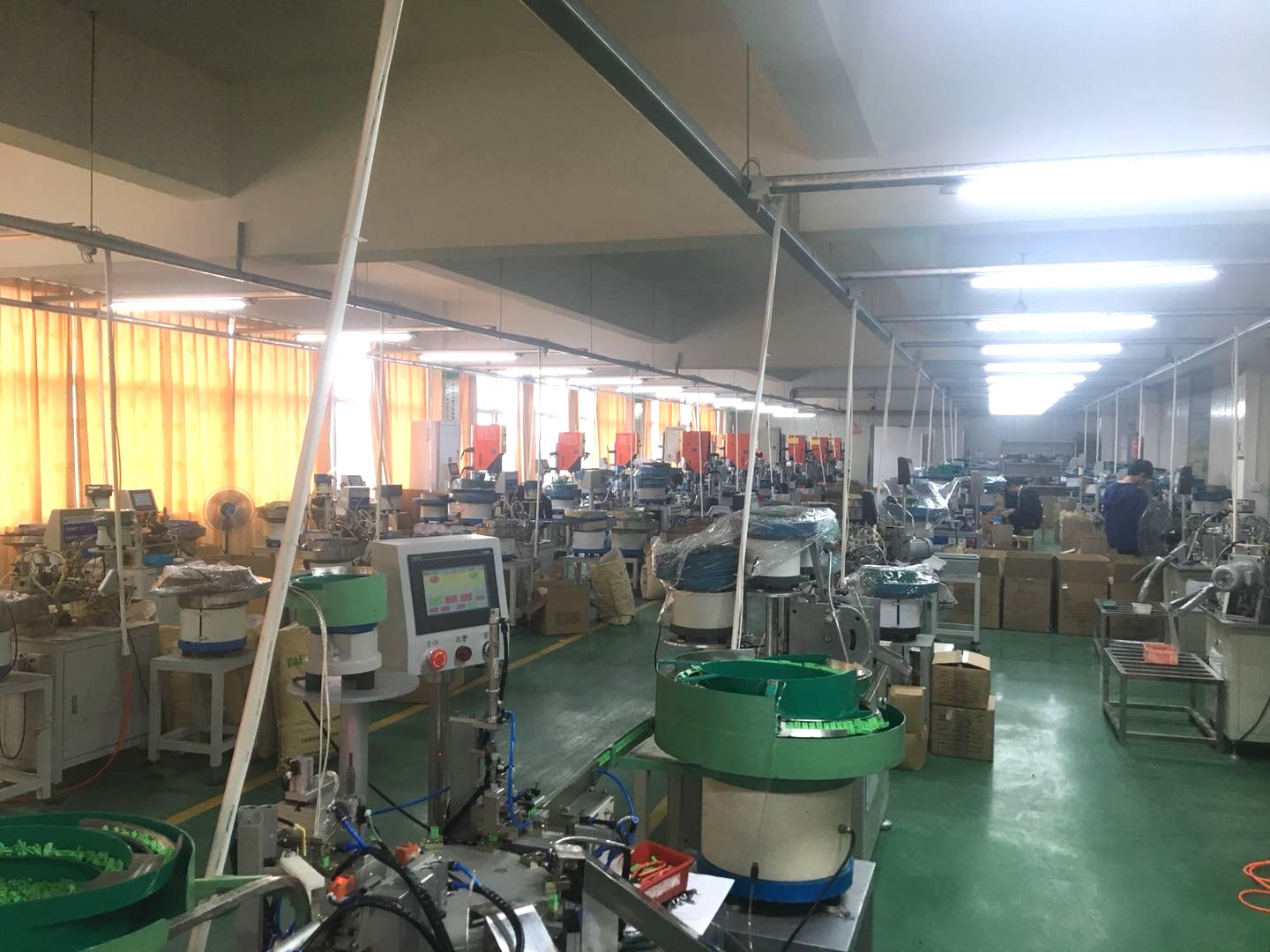

The production of fiber optic adapters requires precision engineering. Our skilled technicians use advanced CNC machinery, laser welding, and automated assembly systems to manufacture the adapter components. Each piece is crafted with high accuracy, ensuring tight tolerances and perfect fit between the connectors and adapters.

Key steps in the manufacturing process include:

• Molding and shaping the adapter housing.

• Ceramic ferrule installation with precision alignment for perfect fiber core alignment.

• Connector assembly and integration of coupling mechanisms, such as screw-on or snap-in designs.

This phase also includes the inspection of tolerance levels to make sure that each adapter meets the required dimensional standards.

3. Assembly and Initial Testing

Once the individual components are manufactured, they are carefully assembled into the final fiber optic adapters. During this phase, the following steps are performed:

• Connector insertion: Ensure proper alignment of the connectors and ferrules to prevent any misalignment that may lead to signal loss or performance degradation.

• Coupling mechanism: Check for smooth engagement of the coupling mechanism (whether screw-type or push-pull), ensuring that the adapter can securely lock the fiber connectors in place.

Initial testing is conducted at this stage to check:

• Physical integrity: Ensure there are no defects such as cracks or material flaws.

• Alignment and fit: Confirm the adapter is correctly aligned to prevent any interference with the fiber cores.

4. Insertion Loss Testing

One of the most crucial aspects of fiber optic adapter performance is insertion loss—the amount of signal that is lost as it passes through the connector. At Chengdu Focus Infra Materials Company, we perform precise optical testing to ensure that each fiber optic adapter has minimal insertion loss and maintains signal integrity.

During this stage, each adapter undergoes:

• Optical performance testing using optical power meters and light sources to measure the loss of signal when transmitted through the adapter.

• Single-mode and multi-mode testing, ensuring that the adapters perform efficiently across various fiber types.

Adapters that fail to meet the insertion loss specifications are removed from the production line and sent back for correction.

5. Durability and Stress Testing

We understand that fiber optic adapters must perform reliably under various environmental conditions. As part of our quality assurance, we conduct rigorous durability testing to ensure the products can withstand typical operational stresses. This includes:

• Vibration resistance testing: Simulating vibrations to verify the adapter’s ability to maintain a secure and stable connection.

• Temperature cycling: Exposing the adapters to extreme temperatures to assess their ability to perform under varying environmental conditions.

• Mechanical testing: Checking for the mechanical strength of the adapters, including the coupling mechanism, ensuring they are resistant to wear and tear over time.

6. Final Visual and Functional Inspection

Before being packaged and shipped, every fiber optic adapter undergoes a final visual inspection. This step includes checking for any cosmetic defects, such as:

• Scratches

• Discoloration

• Incorrect labeling

In addition to visual checks, a functional test is performed to ensure that the adapter works seamlessly with the fiber connectors and provides optimal connectivity.

7. Packaging and Shipping

Once the fiber optic adapters have passed all inspections, they are carefully packaged to protect against damage during shipping. Each adapter is placed in anti-static packaging to avoid damage from electrostatic discharge (ESD). The final step includes labeling and documentation, ensuring that each batch is traceable and complies with international shipping regulations.

At this point, our fiber optic adapters are ready to be shipped worldwide, backed by our promise of quality and reliability.

Why Choose Chengdu Focus Infra Materials Company?

At Chengdu Focus Infra Materials Company, we are committed to producing high-quality, reliable fiber optic adapters that ensure optimal performance in a wide range of applications, including telecommunications, data centers, FTTH (Fiber to the Home), industrial automation, and military systems. Our comprehensive production inspection process guarantees that each product meets the highest industry standards for performance, durability, and reliability.

By following strict quality control measures at every stage of the production process—from raw material selection to final testing—we ensure that our customers receive only the best fiber optic adapters on the market.

Contact Us for Your Fiber Optic Needs

If you're looking for premium fiber optic adapters with exceptional quality and performance, Chengdu Focus Infra Materials Company is your trusted partner. Contact us today to learn more about our products and how we can support your fiber optic network requirements.
