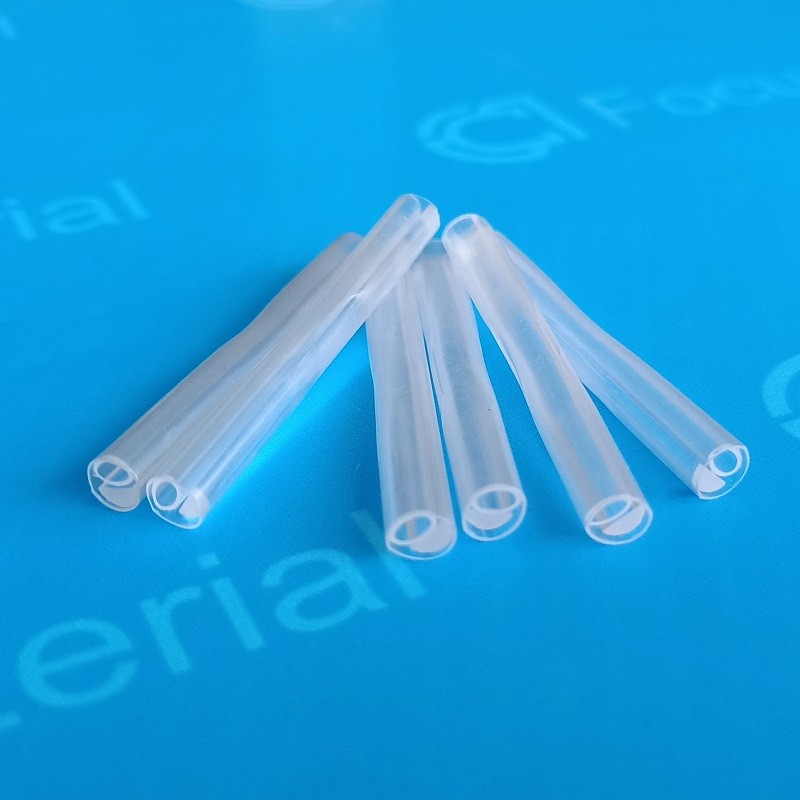

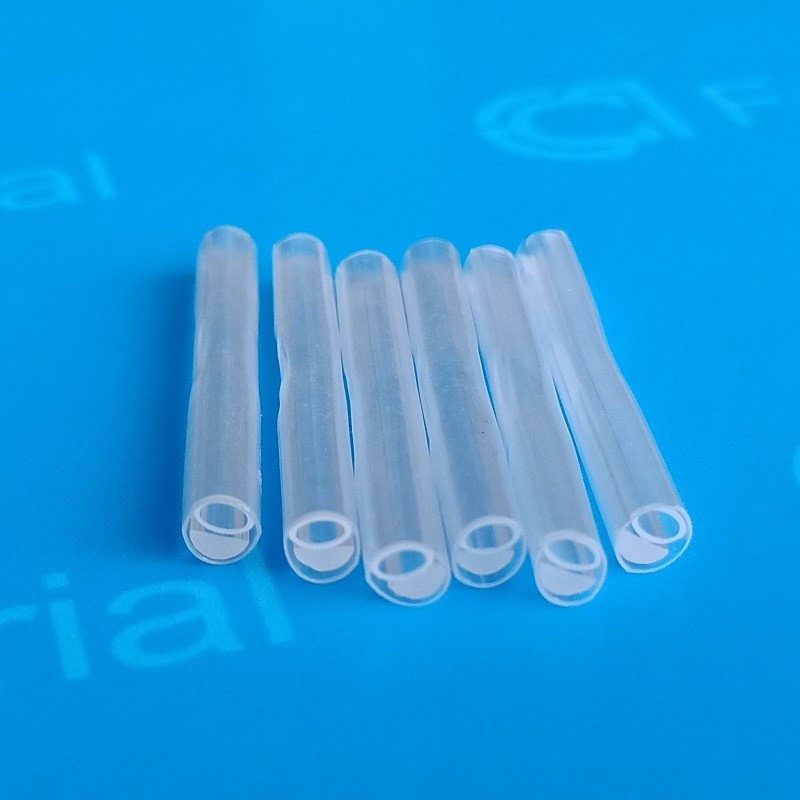

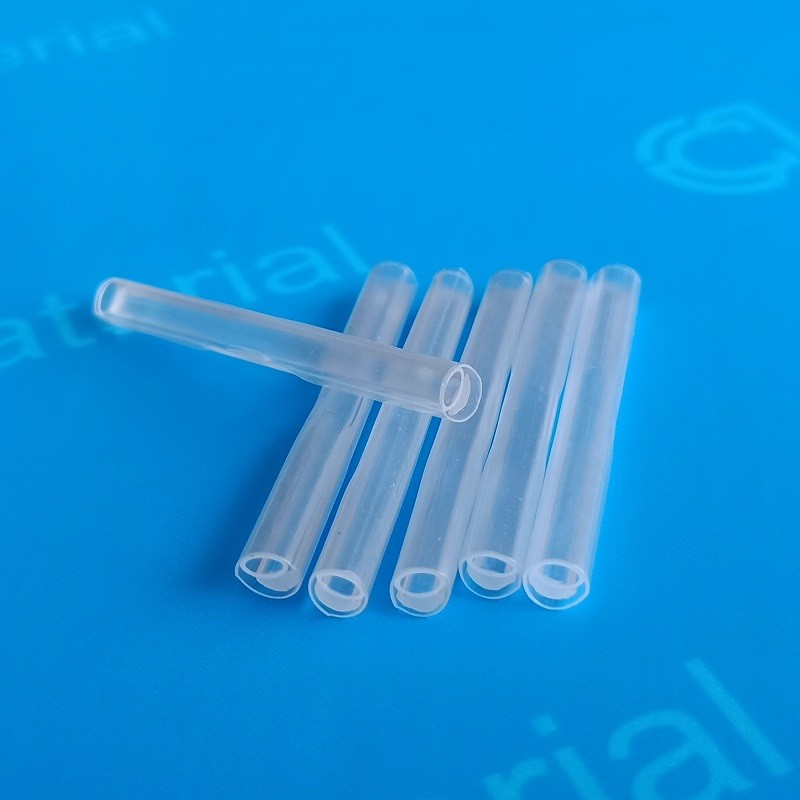

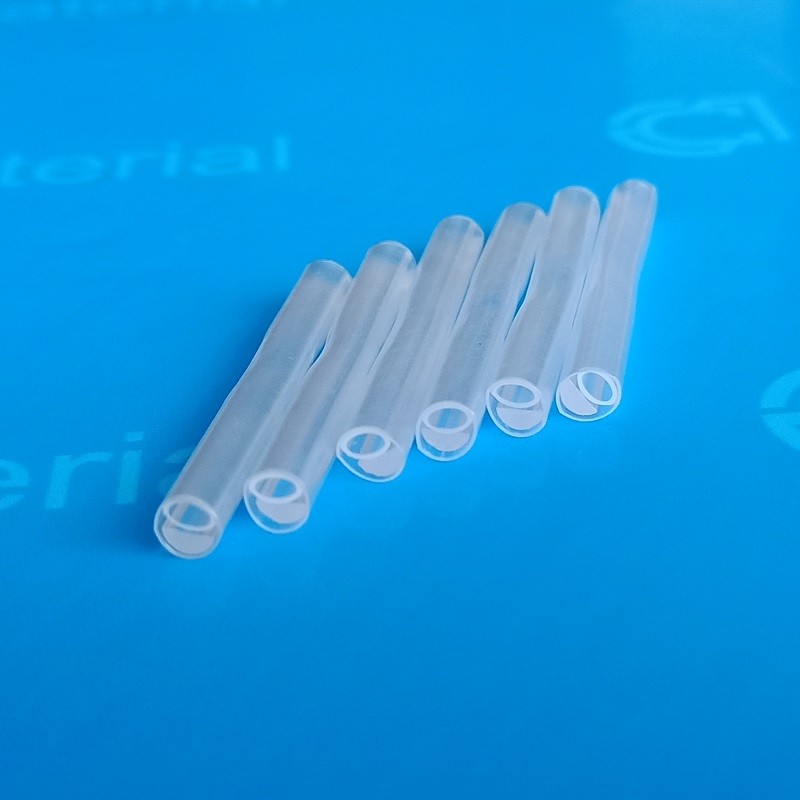

Ribbon Fiber Optic Fusion Splicing Protection Sleeve with Quartz Rod

Ribbon Fiber Optic Fusion Splicing Protection Sleeve with Quartz Rod

Description:

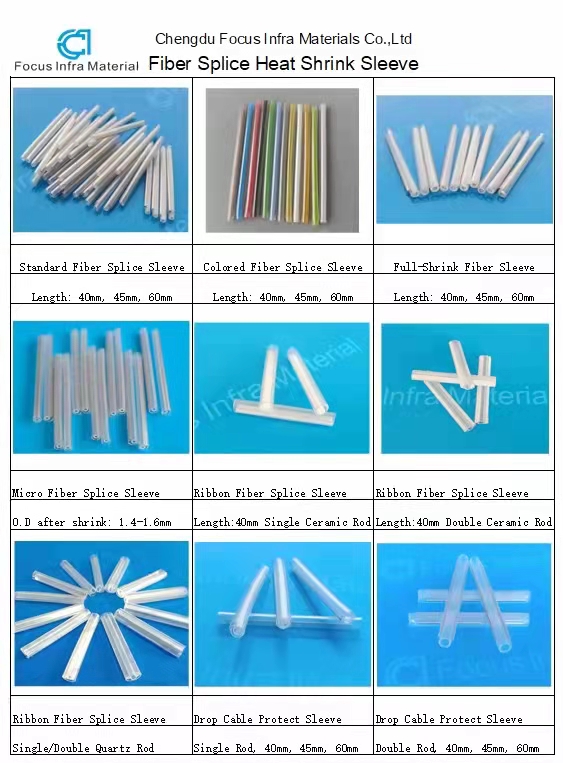

 Shrinkable Fiber Optic Sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing. Chengdu Focus Infra Materials company offers various type of fiber optic heat shrinkable sleeves for FTTH, FTTX, FTTP Network Project. The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).

 Quartz Rod Fiber Optic Sleeves offer more clearly view to check the splicing status. welcome to contact us at yuki.hecy@cdfocusinfra.com for more details.

Feature:

1. Single holed (preshrunk)ends eliminates improper fiber threading
2. Smooth, deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
3. Extended liner length prevents contact between the fiber and ther backbone
4. Clear sleeve design persign permits easy centering of splice before heating
5. Sealing structure makes the splice free from effect of temperature and humidity from environment

6. Protecting splicing point
7. Improve mechanical strength
8. Simple operation, reducing the risk of fiber damage during installation.
9. Does not affect the optical characteristics of the optical fiber.
10. Sealing structure to have good resistance of temperature and humidity performance

Applications:

1.Fusion splicing
2.Fiber cable protecting

3.FTTH system

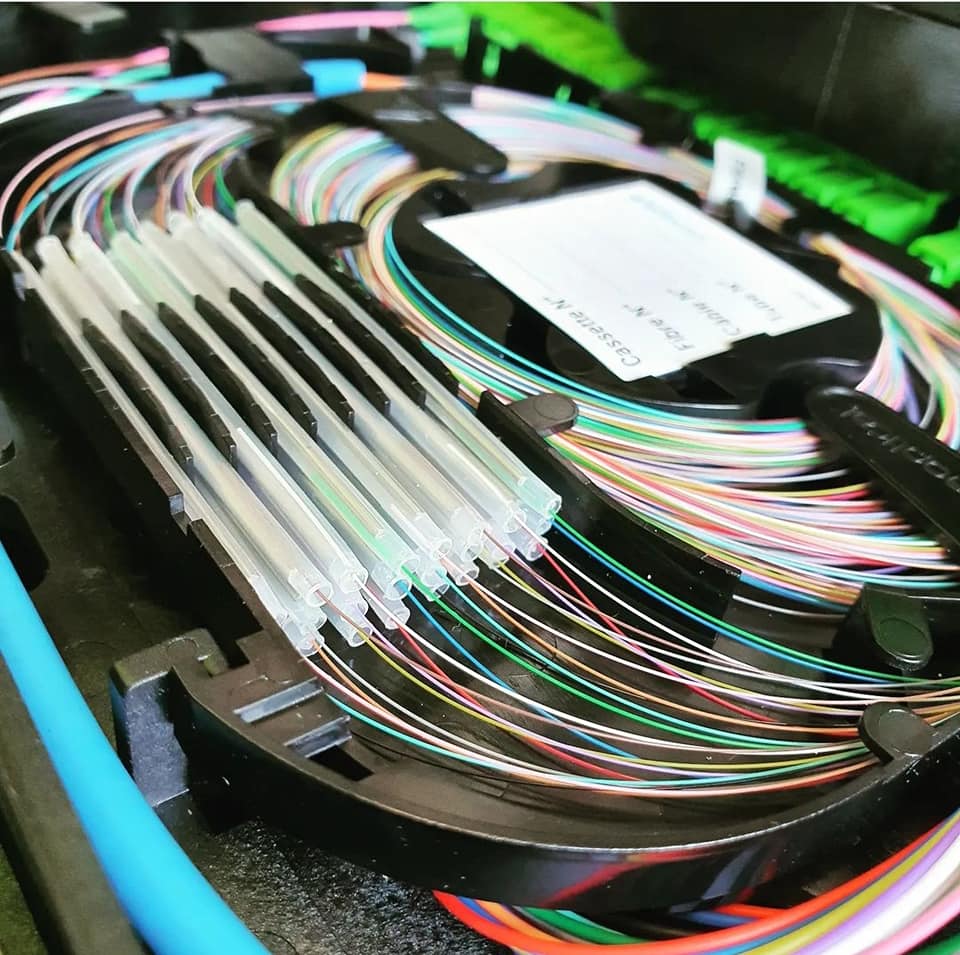

4.Rack-mount & Wall-mount terminal box

5. Fiber Opitc Splice Closure

6. optical fiber switch box and so on continue protection
