Ribbon Cable Fiber Fusion Splice Protector Sleeve for Optical Telecom Network

Description:

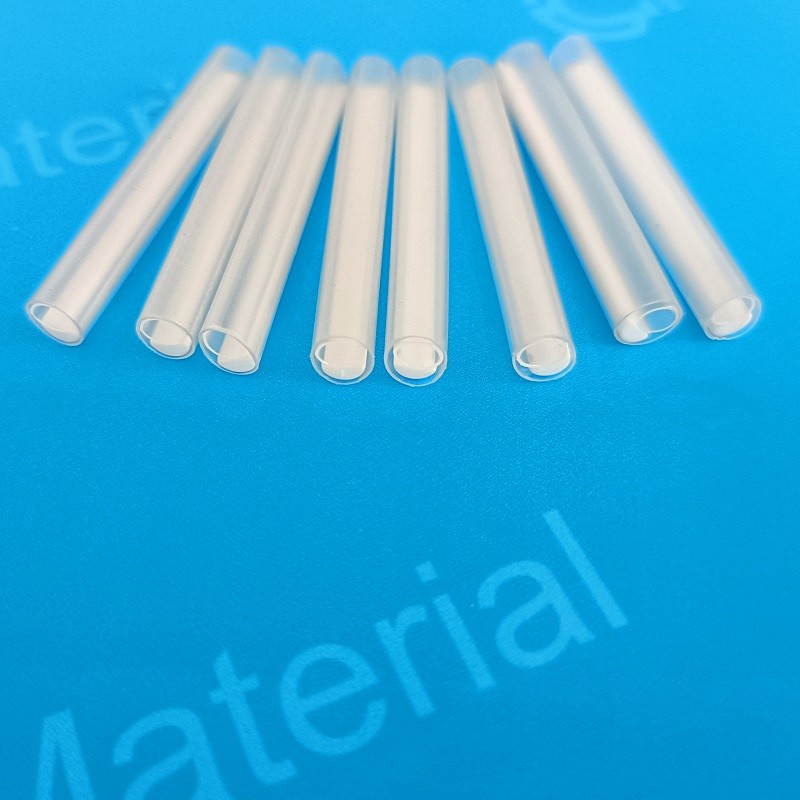

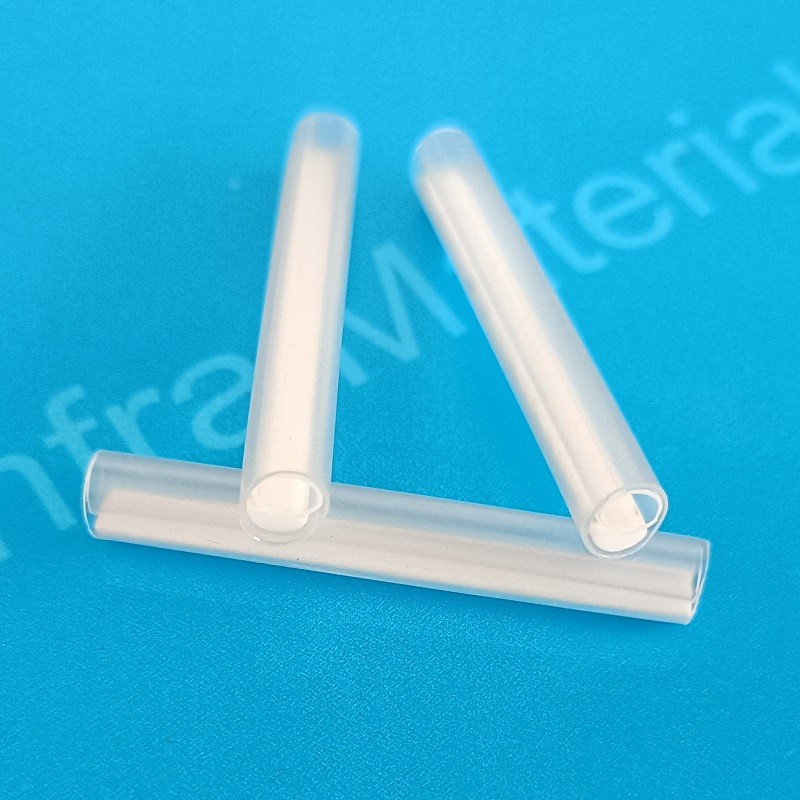

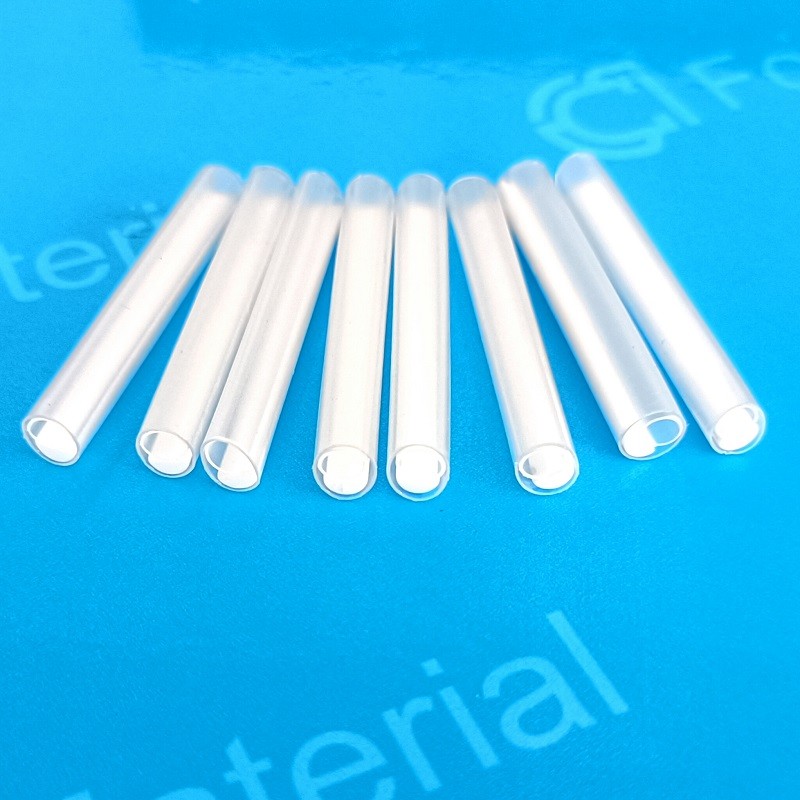

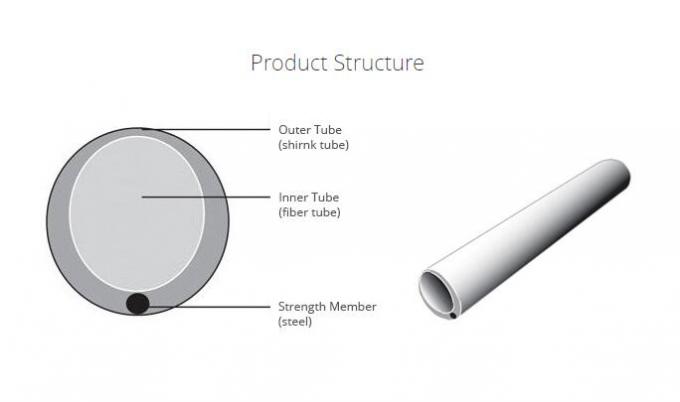

   Ribbon fiber splice sleeves are applied in bar fiber-optic cables of the RIBBON type. They enable to secure up to twelve fibers in one sleeve. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices and quickness of assembly. Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.

  Chengdu Focus Infra Materials company offers various type of Heat Shrinkable Sleeves to protect fiber splicing joint poit. Welcome you to inquiry about the product details.

Feature:

1. Single holed (preshrunk)ends eliminates improper fiber threading
2. Smooth, deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
3. Extended liner length prevents contact between the fiber and ther backbone
4. Clear sleeve design persign permits easy centering of splice before heating
5. Sealing structure makes the splice free from effect of temperature and humidity from environment

6. Protecting splicing point
7. Improve mechanical strength
8. Simple operation, reducing the risk of fiber damage during installation.
9. Does not affect the optical characteristics of the optical fiber.
10. Sealing structure to have good resistance of temperature and humidity performance

Applications:

1.Fusion splicing
2.Fiber cable protecting

3.FTTH system

4.Rack-mount & Wall-mount terminal box

5. Fiber Opitc Splice Closure

6. optical fiber switch box and so on continue protection
