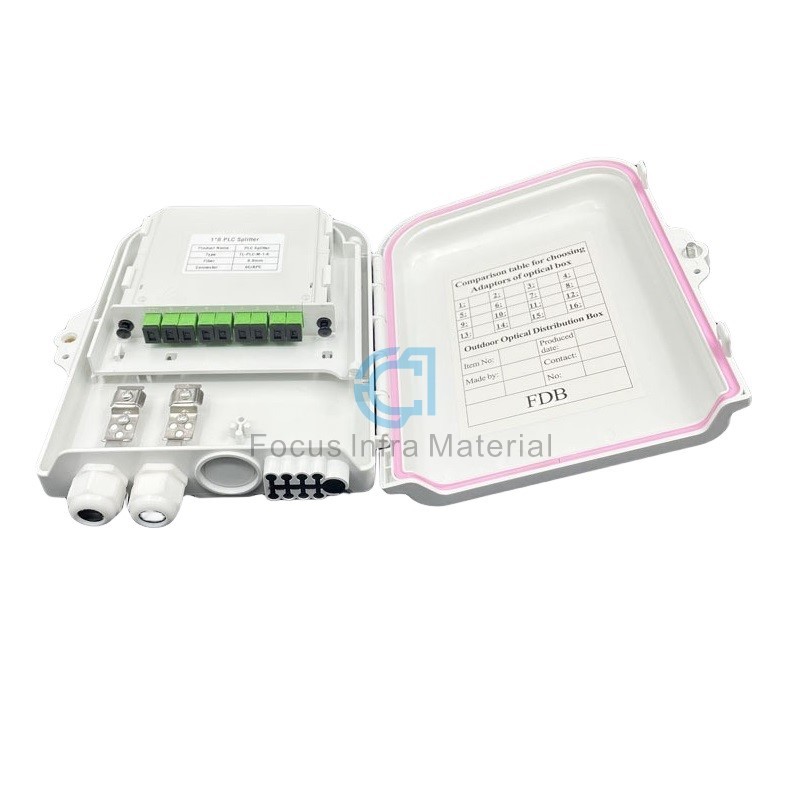

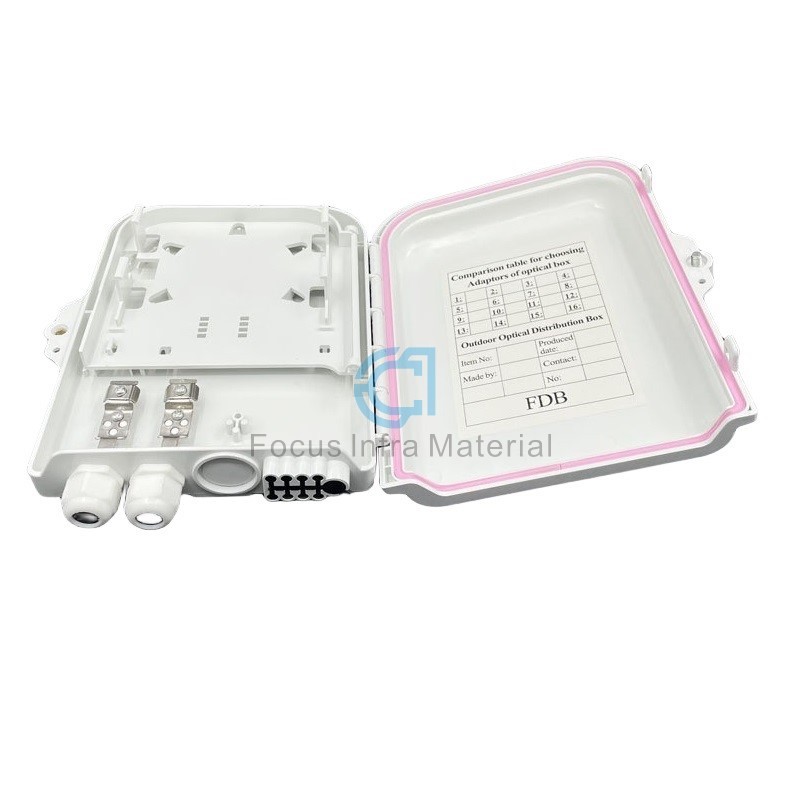

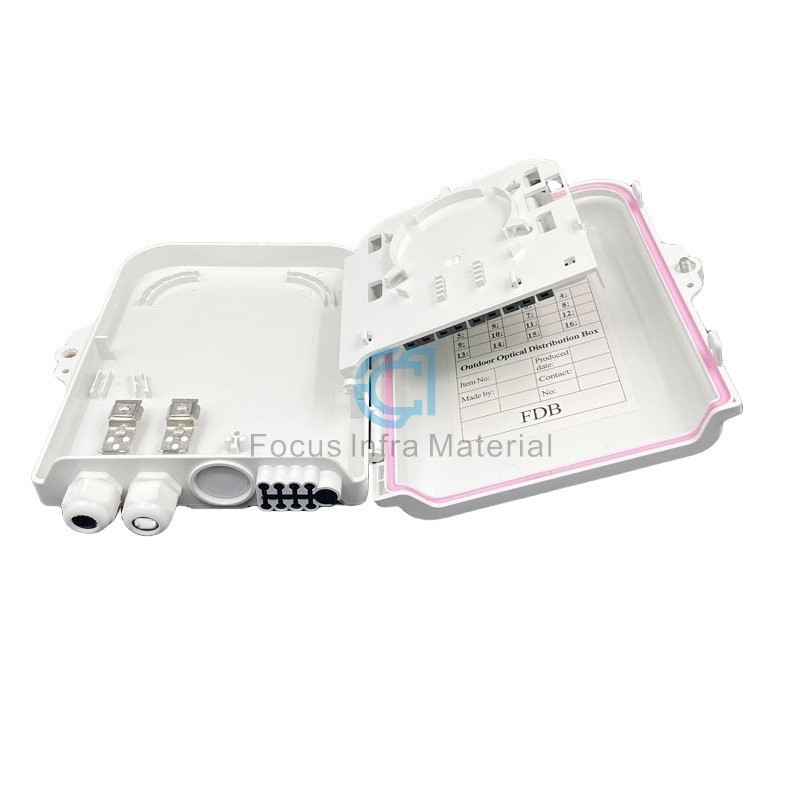

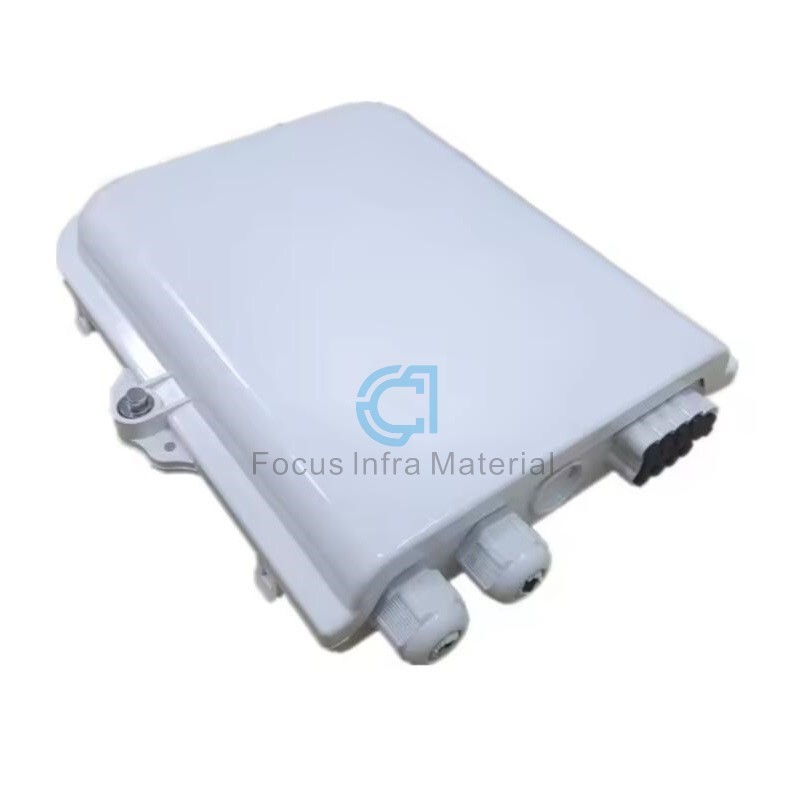

Outdoor 8 Core Fiber Optic Distribution Box Fiber Optic FTTH Terminal Box

Model Number : FOCC-F-10
Cores: 8 Cores
Cable Port: 2 IN 8 OUT
Texture Of Material: ABS, PC

Outdoor 8 Core Fiber Optic Distribution Box Fiber Optic FTTH Terminal Box


Description:

The equipment is used as a termination point for the feeder cable to connect withdrop cable in FTTx communication network system. The fiber splicing, splitting.distribution can be done in this box, and meanwhile it provides solid protectionand management for the FTTx network building.


Feature:

1.Water-proof design with IP-66 Protection level.
2.Integrated with splice cassette and cable management rods.
3.Manage fibers in a reasonable fiber radius condition.
4.Easy to maintain and extend the capacity.
5.Fiber bend radius control more than 40mm.
6.Suitable for the fusion splice or mechanical splice.
7.2 pcs of 1*8 Splitter can be installed as an option.
8.Efficient cable management.16 ports cable entrance for drop cable


Applications:

1.Optical LAN & WAN & CATV
2.FTTH project & FTTX Deployments
3.Broadband High-bit rate data transmission
4.Active device terminations
5.Testing instruments
6.Optical fiber communication networks
7.PON Networks
8.Optical Signal Distribution


Specification:

Focus Infra Materials

FOCC-F-09

                                                           Outdoor 8 Core Fiber Optic Distribution Box

Product dimensionsmm

240*200*50

In and out port

2 in, 8 out

Material

PC, ABS, customizable

Color

Black, gray, white,   customizable

Install the   application (applicable environment)

Indoor, outdoor. (wall   mount, pole mount, aerial)

NET weight of   product(kg)

0.6

Number of boxes packed

20

Dimensions of   cartons(cm)

52*32*42

Gross weight (kg)

13
