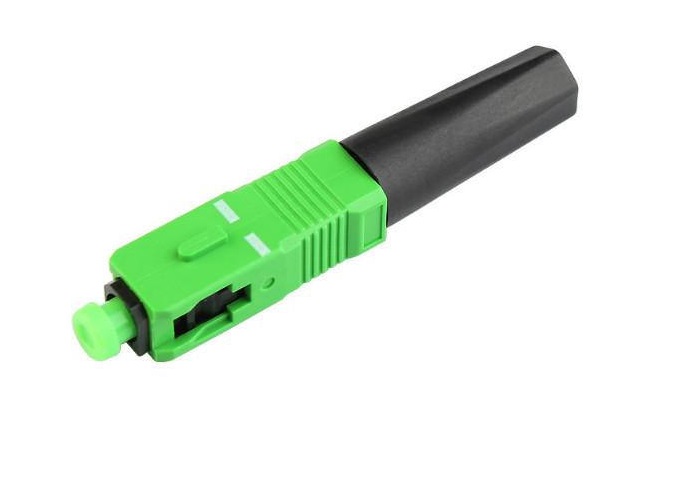

Fiber Optic SC APC UPC Waterproof Quick Assembly Fast connector
Application: FTTH drop cable,CATV ,CCTV
Diameters: 0.9mm, 2.0mm, 3.0mm, Others
Insertion Loss: IL<0.2db
Return Loss: > 55db
Description:

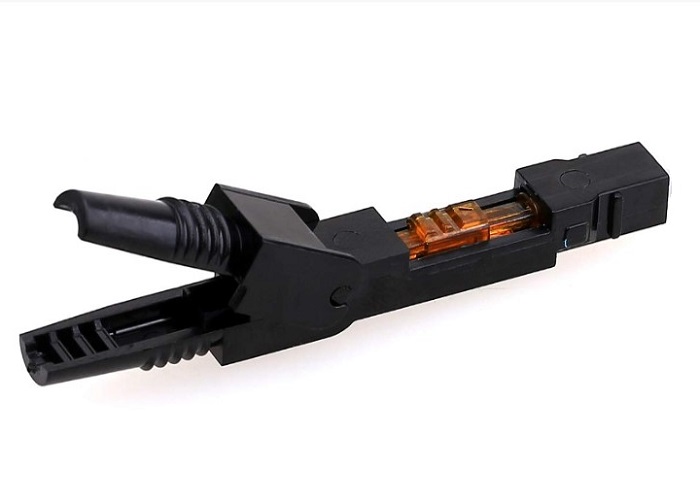

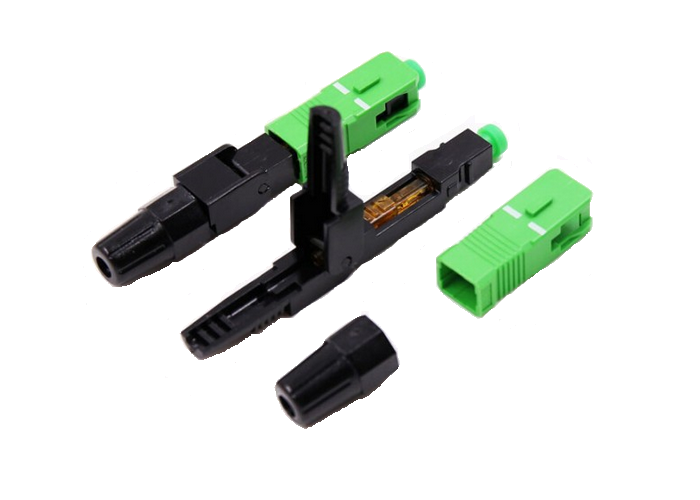

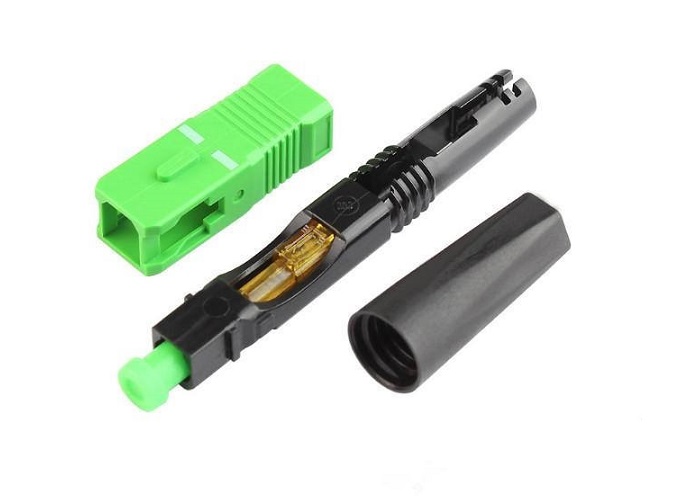

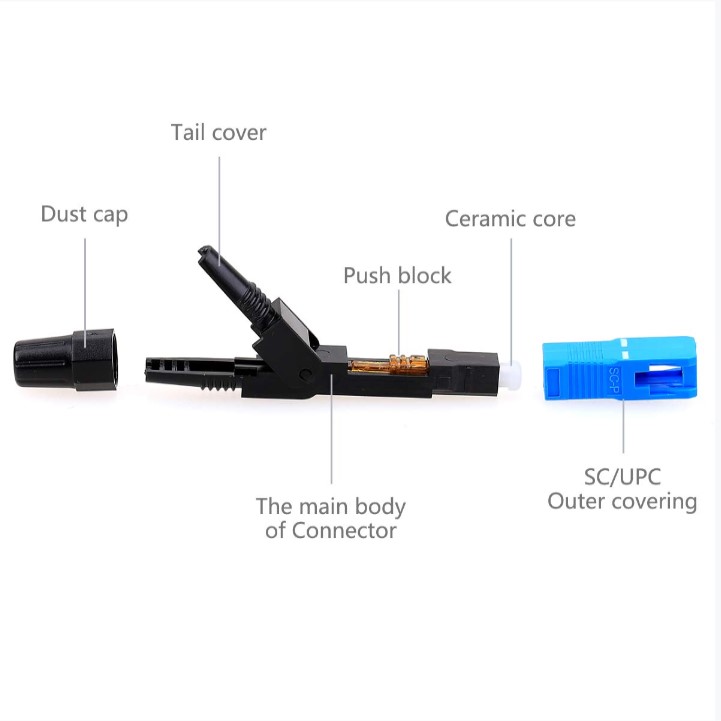

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Feature:
1. Fast and easy termination of rectangular section FTTH drop cable
2. No polishing or adhesives required
3. Terminate cable to exact required length
4. Can be re-opened up to 5 times
5. Simple to assemble with our guide rail tool
6. Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
7. Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable / Indoor cable |
|
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
|
|
Optical fiber diameter |
SM(9/125), MM(50/125, 62.5/125) |
|
125μm ( 657A & 657B ) |
|
|
Tight buffer diameter |
250μm |
|
Fiber mode |
Single mode |
|
Operation time |
About 100s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
> 50db(PC), > 55db(UPC), > 65db(APC) |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40~+75°C |
|
On-line tensile strength (20 N) |
IL ≤ 0.5dB RL ≤ 5dB |
|
Mechanical durability (500 times) |
IL ≤ 0.5dB RL ≤ 5dB |
|
Drop-off test (drop-off height 4m,once per direction, totally 3 times) |
IL ≤ 0.5dB RL ≤ 5dB |
