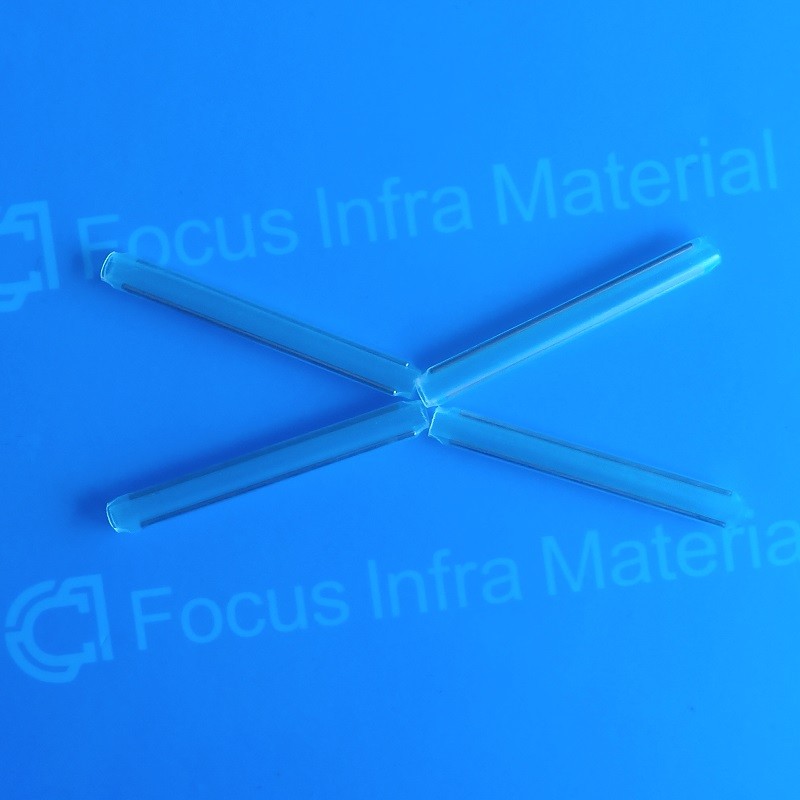

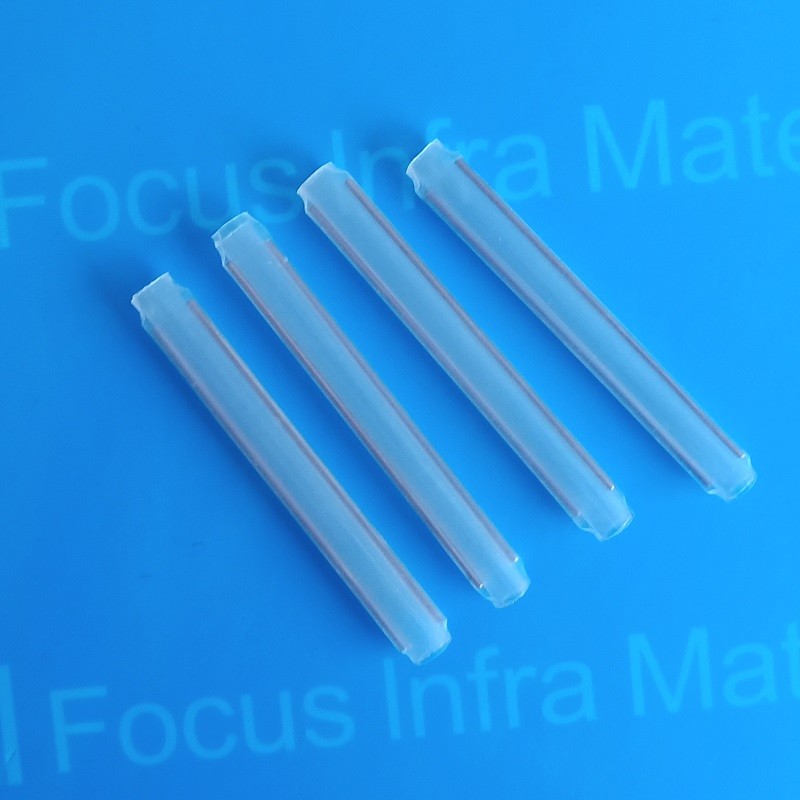

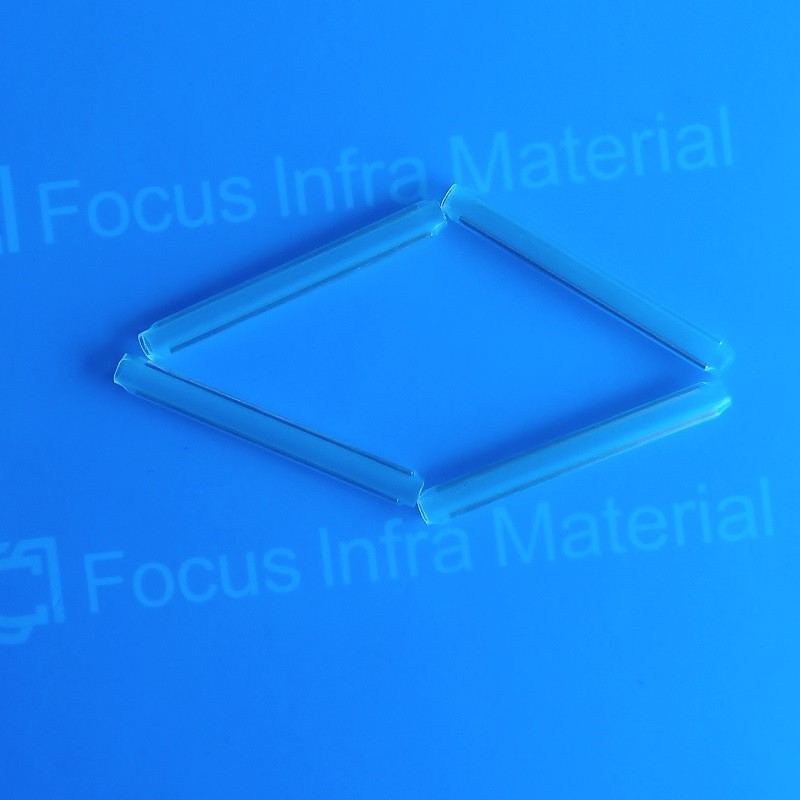

Fiber Optic Pigtail Joint Protection Sleeves 60mm Drop Cable Protective Tube

Application: FTTH Project
Length: 45mm, 60mm. Cutomize Length Support
Steel Rod: Double Rod
Inner Diameter: 3.9mm

Description:



 Drop Cable Protect Fiber Heat Shrink Sleeves is a special polyolefin thermal-shrinkable sleeve, also called EVA. The outer layer is made of high quality soft crosslinked polyolefin material and inner hot-melt adhesive. The outer layer has the characteristics of insulation, corrosion prevention and wear resistance, while the inner layer has the advantages of low melting point, waterproof seal and high adhesion.

Drop Cable Protect Fiber Heat Shrink Sleeves can Moisture resistant for environmental protection Clear sleeve make it easy to detect splice before shrinkage Easily use and avoid any damages to the optical fiber during installation Color optical fiber splice protector is very convenience for installation.

 The Drop Cable Protect Fiber Heat Shrink Sleeves is widely used in FTTH Drop cable joint connection protective. With big Inner Diameter of inner tube, we can put drop cable easily. communication optical fiber equipment such as optical fiber splice box, optical fiber terminal box, optical fiber distribution box, optical fiber transfer box, etc., when using Drop Cable Protect Fiber Heat Shrink Sleeves, it can not only protect the splice point but also increase the optical fiber machinery the strength reduces the damage of the optical fiber during the installation process without affecting the light guide characteristics of the optical fiber. If it is a transparent Drop Cable Protect Fiber Heat Shrink Sleeves, the splicing situation of the optical fiber can be seen clearly at a glance when the optical fiber is connected.



Features:



1. Not affect the optical conductivity of the spliced fiber

2. Easy operation, reduce the damage of optical fiber duringl installation

3. Strong practicality

4. Transparent casing

5. Quickly shrink, improving work efficiency

6. extend the service life of the fiber



Technical Parameters:

Specification

Test method

Typical data

Tensile strength(MPa)

ASTM D 2671

18

Elongation at Break (%)

ASTM D 2671

700

Density(g/cm2)

ISO R1183D

0.94

Dielectric strength (KV/mm)

IEC 243

20

Permittivity

IEC 243

2.5

Length rate of change (%)

ASTM D 2671

+5
