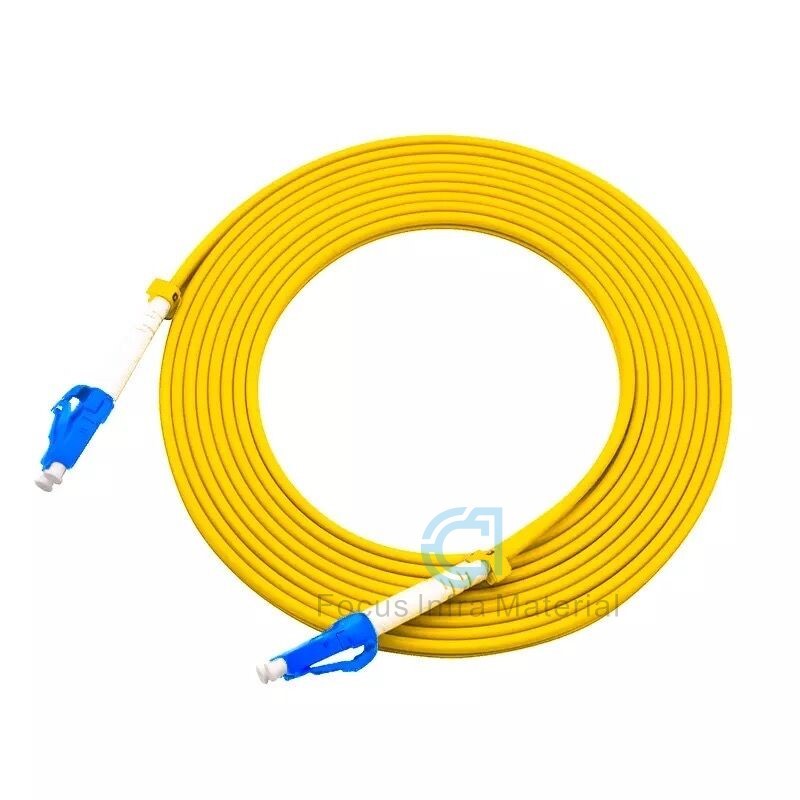

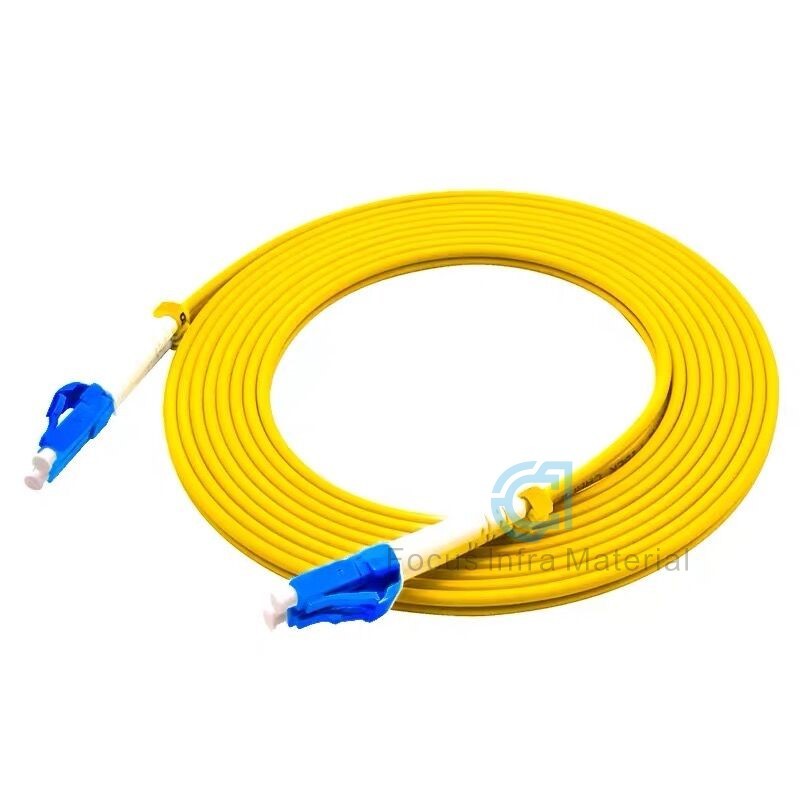

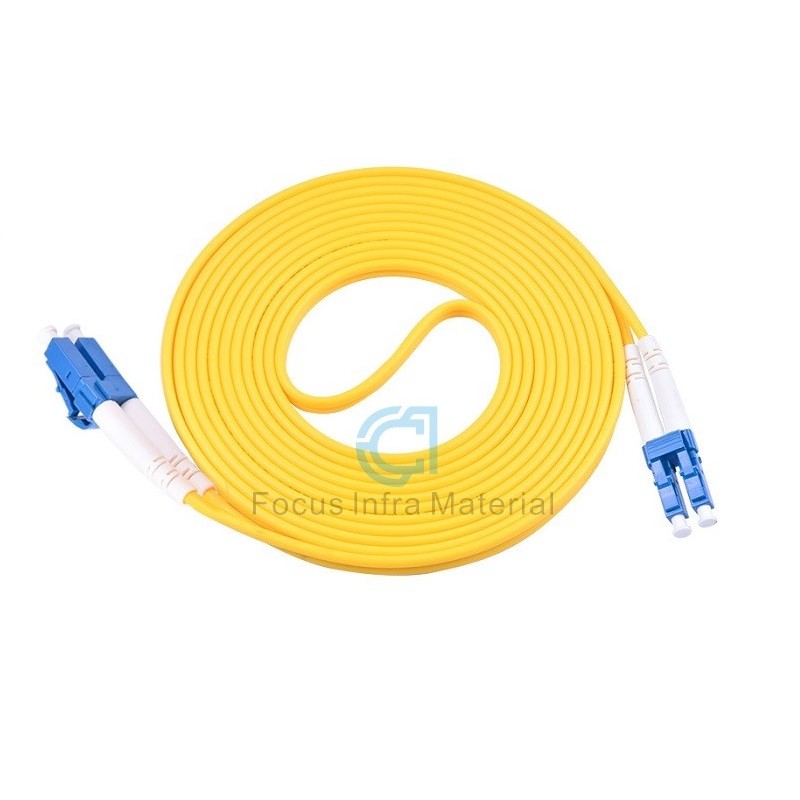

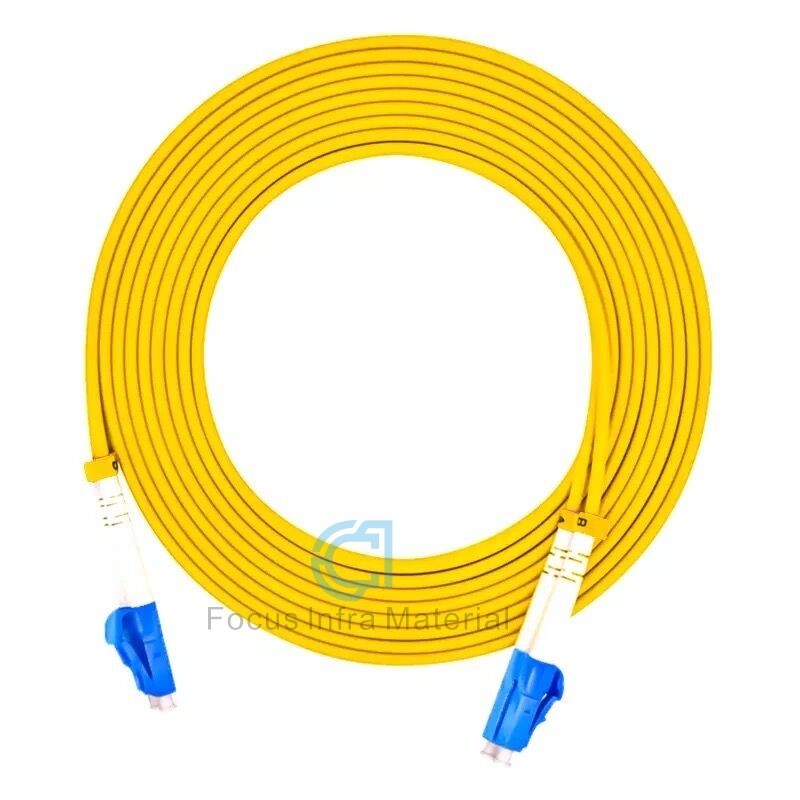

FTTH LC To LC Fiber Jumper Cable Duplex 0.9mm 2mm 3mm

Model Number: LC to LC
Connector Type: LC SC ST FC MU MPO
Outer Jacket: PVC/LSZH/OFNP/OFNR
Cable Diameter: 0.9mm/2.0mm/3.0mm Cable

FTTH-LC-To-LC-Fiber-Jumper-Cable-Duplex-Fiber-Optic-Patch-cord


Description:


FTTH Jumper Cable for Network SM Duplex Single Mode LC to LC Fiber Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.

 There are many kinds of optical fiber jumpers (also known as optical fiber connectors), that is, optical fiber connectors connected to optical modules, and they cannot be used with each other. SFP module is connected to LC optical fiber connector, while GBIC is connected to SC optical fiber connector. LC type optical fiber jumper: connector connecting SFP module, which is made of modular jack (RJ) latch mechanism with convenient operation.

 LC-LC Fiber Optic Cable body is made of PVC/ LSZH plastic materials, which is shiny, tough, environmental protection, not fade,not broken and not easily deformed. The inside optical cable is aramid, which is tough, tensile, non-toxic, fire retardant, core protection and low smoke. The connector is PBT plastic materials and fine copper, which is firm, durable, environmentalprotection, high temperature resistant, not fade, not broken and not easily deformed.



Technical Parameters
PARAMETER UNIT FC,SC,LC ST,MU
SM MM SM MM
PC UPC APC PC PC UPC PC
Insertion Loss(Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30
Operating Wavelength nm 1310 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.3
Operating Temperature -40℃ to 75℃
Storage Temperature -40℃ to 85℃
Cable Diameter mm Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket   PVC or LSZH or customized
Color fo the jacket   SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe   ITU-T G652, or G655, or G657
Multi monde fiber   ITU-TG.651
Fiber type   9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)


3.Application:

1. Communication rooms

2. FTTH (Fiber to The Home)

3. LAN (Local Area Network)

4. FOS (fiber optic sensor)

5. Fiber Optic Communication System

6. Optical fiber connected and transmitted equipment
