ABS box PLC splitter SC APC UPC Fiber Optic Splitter for FTTH Network

ABS box PLC splitter SC APC UPC Connector Fiber Optic PLC Fiber Optic Splitter

 Planar lightwave circuit (PLC) splitter is a high-performance optical power management device fabricated with advanced silica optical waveguide technology, designed to efficiently distribute optical signals from the Central Office (CO) to multiple end-user locations.

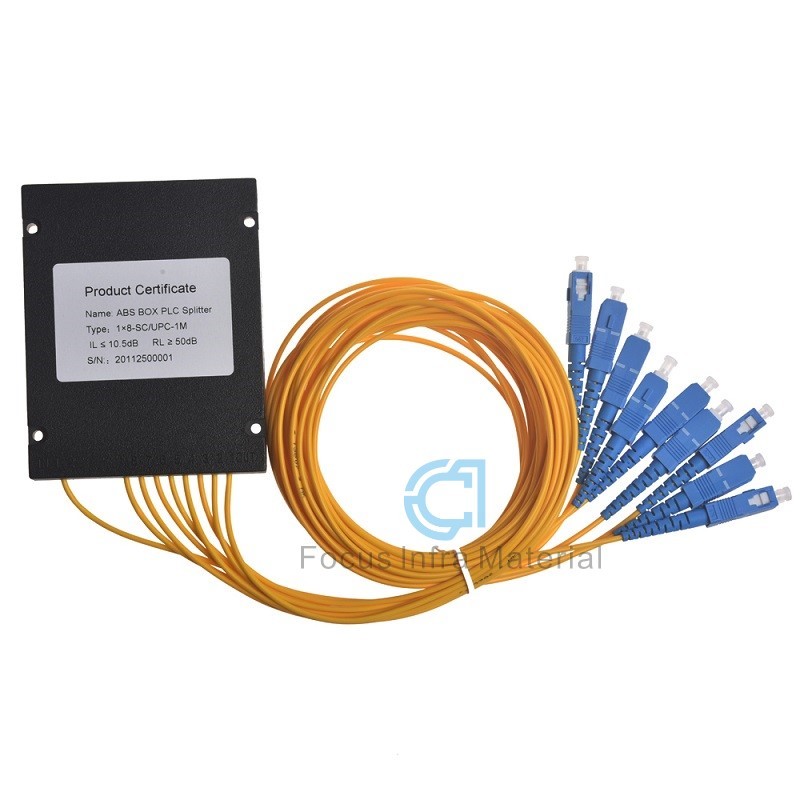

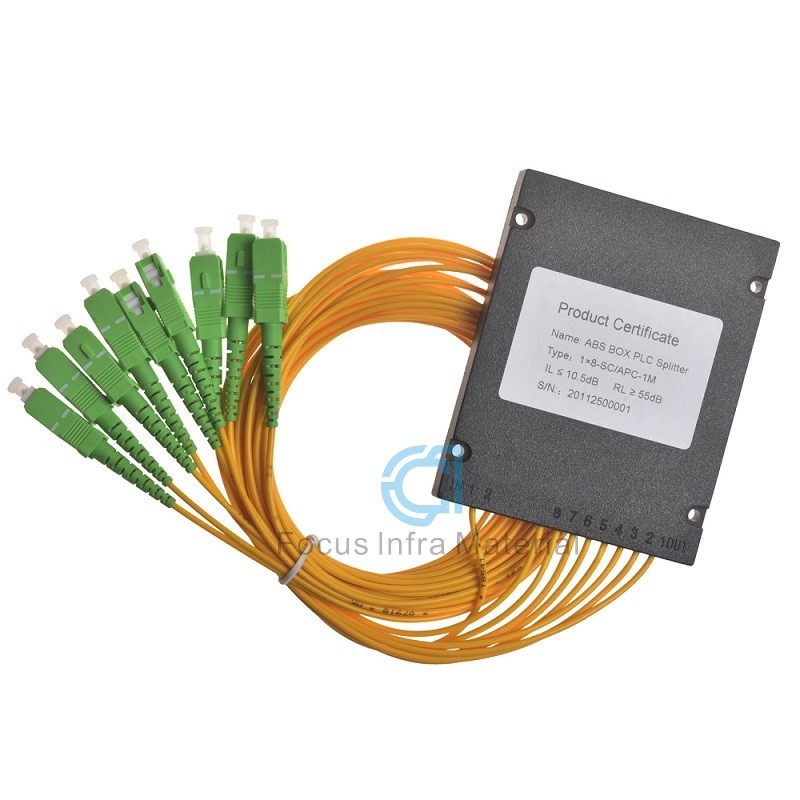

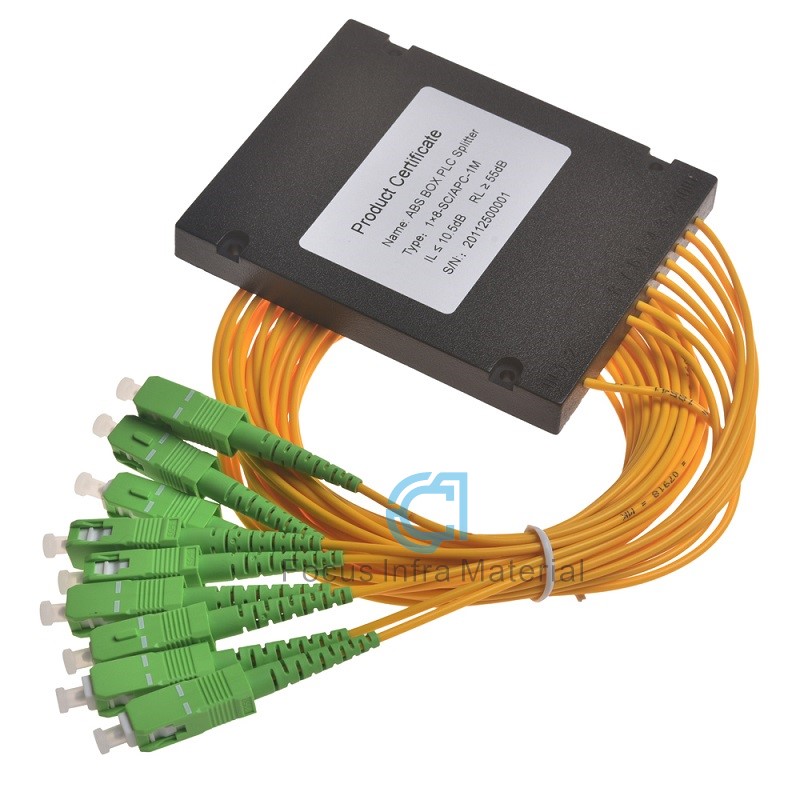

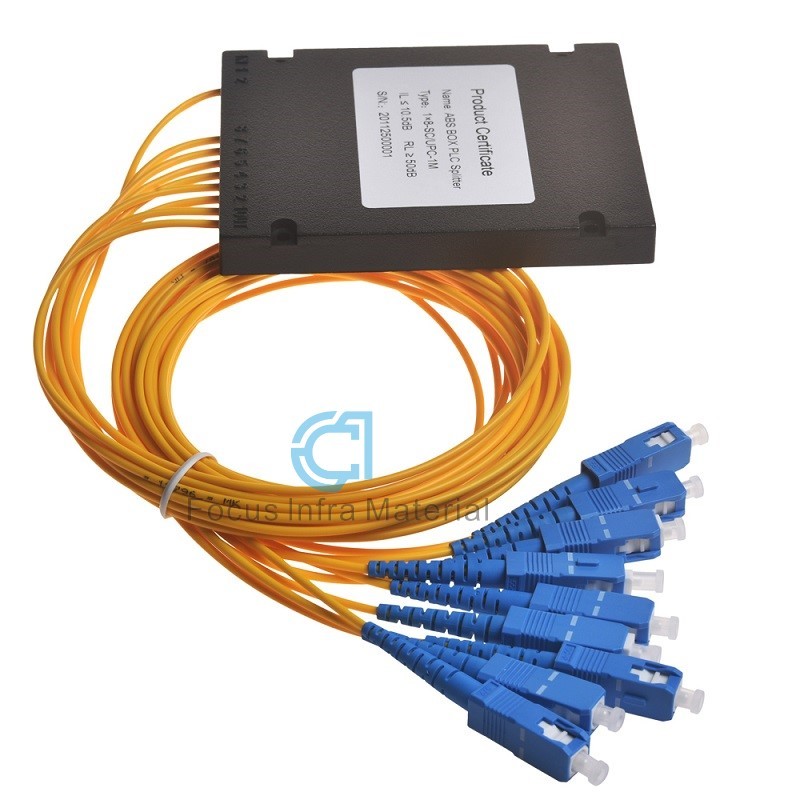

 Our ABS Box PLC Splitter features a compact structure, small size, and excellent flexibility, making it extremely easy to install and deploy in various scenarios such as 19-inch racks, fiber distribution cabinets, and terminal equipment. This fiber optic splitter divides input optical power at a fixed ratio with low loss and high stability. Thanks to its miniaturized design and bending-insensitive fiber cables, it introduces extremely low signal distortion during operation, ensuring reliable long-term optical transmission.

 The pigtailed ABS PLC splitter is the most widely used component in PON networks. It provides full protection for internal optical chips and fiber cables, while supporting convenient and stable installation. It is mainly applied in various fiber connection & distribution devices (including outdoor fiber distribution boxes) and network cabinets.

 Chengdu Focus Infra Materials specializes in the R&D and production of high-quality fiber optic components. For more product models, full specifications, datasheets, and customized solutions, please visit our professional fiber optic product website: www.optickits.com

Features:

• Good optical uniformity and low insertion loss

• Low Polarization Dependent Loss (PDL)

• Excellent environmental stability

• Outstanding mechanical performance

• Housing type, split ratio, and connector type can be fully customized

Applications:

• Fiber to The Home (FTTH)

• Passive optical networks (PON)

• Local Area Networks (LAN)

• Cable Television (CATV)

• Optical test & measurement equipment

• Item	Specification
  Operating Wavelength	1260 ~ 1650 nm
  Type	1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16
  Insertion Loss (Max.)	≤4.2 / ≤7.5 / ≤10.6 / ≤13.7 / ≤17.2 / ≤21 / ≤7.8 / ≤10.8 / ≤13.9 dB
  Uniformity (Max.)	≤0.6 / ≤0.8 / ≤1.0 / ≤1.5 / ≤2.0 / ≤2.5 / ≤1.0 / ≤1.5 / ≤2.0 dB
  PDL (Max.)	<0.2 / <0.2 / <0.2 / <0.3 / <0.3 / <0.4 / <0.3 / <0.3 / <0.4 dB
  Directivity (Min.)	55 dB
  Return Loss (Min.)	55 dB (50 dB optional)
  Operating Temperature	-45 ~ +85 °C
  Storage Temperature	-5 ~ +75 °C
  Fiber Length	1m or customizable
  Fiber Type	Corning G656A1 / Fiberhome G657A1
  Connector Type	Customizable (SC APC / SC UPC available)
  Power Handling	300 mW
